GoAccess web log analyzer

On the geekfarm, we frequently use GoAccess for ad-hoc web traffic analysis and monitoring. It offers both a TUI and an HTML interface.

GitHub - allinurl/goaccess: GoAccess is a real-time web log analyzer and interactive viewer that runs in a terminal in *nix systems or through your browser.

GoAccess is a real-time web log analyzer and interactive viewer that runs in a terminal in *nix systems or through your browser. - allinurl/goaccess

GitHuballinurl

GoAccess - Visual Web Log Analyzer

GoAccess is an open source real-time web log analyzer and interactive viewer that runs in a terminal in *nix systems or through your browser.

GoAccess

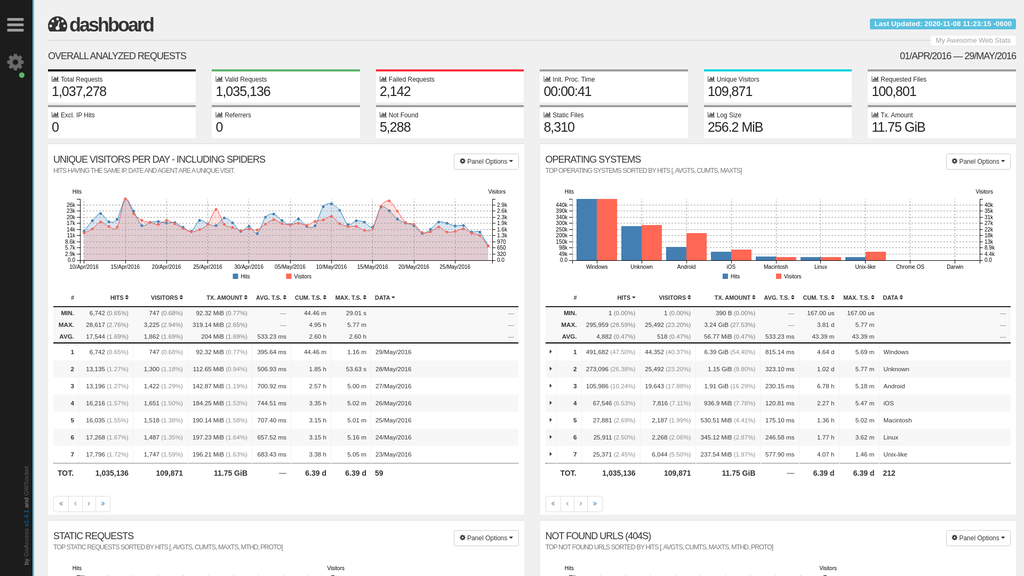

Command Line HTML report

When I want to analyze or monitor the traffic coming to Ghost, here's the command I use

goaccess /var/log/nginx/access.log --log-format "COMBINED" --sort-panel='VISIT_TIMES,BY_DATA,DESC' -o /path/to/nginx/content/report.html --real-time-html --ssl-cert=/path/to/cert.cer --ssl-key=/path/to/cert.key

Then I just navigate to the report.html file URL in my browser.

Sort Panel Options

In the "time distribution" panel, when I'm looking at a single day's data, I prefer to sort the traffic so that the latest hour is at the top. This can be accomplished using the "--sort-panel" argument.

The GoAccess man page lists the options for the "--sort-panel" argument as "<PANEL,FIELD,ORDER>". The FIELD and ORDER options are enumerated under this argument, but I didn't immediately find the list of Panel names.

I tried using the numbers that are displayed in the console, and the various names that are used in the man page and the UI. Eventually I found the list of panel names in the man page under the argument "--enable-panel":

• VISITORS
• REQUESTS
• REQUESTS_STATIC
• NOT_FOUND
• HOSTS
• OS
• BROWSERS
• VISIT_TIMES
• VIRTUAL_HOSTS
• REFERRERS
• REFERRING_SITES
• KEYPHRASES
• STATUS_CODES
• REMOTE_USER
• CACHE_STATUS
• GEO_LOCATION
• MIME_TYPE
• TLS_TYPE

That meant that the argument I needed was:

 --sort-panel='VISIT_TIMES,BY_DATA,DESC'

Streaming Data

When using an HTML report with the "--real-time-html" argument, GoAccess will stream new log data to the browser using web sockets. I'm just using the default address (0.0.0.0 to listen on all available interfaces) and port (7890), so I don't need to override those values on the command line.

By default, GoAccess uses a secure web socket address (wss://). So, when starting GoAccess, I pass in the path to the "Let's Encrypt" certificate and key I'm using for Ghost.

When you load the HTML page in the browser, it will load the report that was generated at the time you started GoAccess. But, it wasn't immediately clear to me if it was connecting to the web socket or not. There are a few ways to confirm this.

First, in the upper left-hand corner, there is a configuration icon that looks like a gear with a small dot at the lower right-hand corner. If you successfully connected to the web socket, the small dot will be green. If not, it will be grey.

Second, in the upper right-hand corner is the "Last Updated" timestamp. If new data is streaming in, then the Last Updated timestamp should very quickly get updated when a new hit comes in to your server logs.

Finally, in the browser, if you open the developer tools and check out the console, you'll see failure messages with the target URL if it fails to connect.

Firewall

By default, GoAccess listens on port 7890. I couldn't access this port directly on the server due to UFW configuration.

I needed to run the following command to allow me to connect from home, replacing 'x.x.x.x' with my home IP address.

ufw allow from x.x.x.x proto tcp to any port 7890

Random Thoughts

Despite the name, "GoAccess" is not written in Go. 😄
